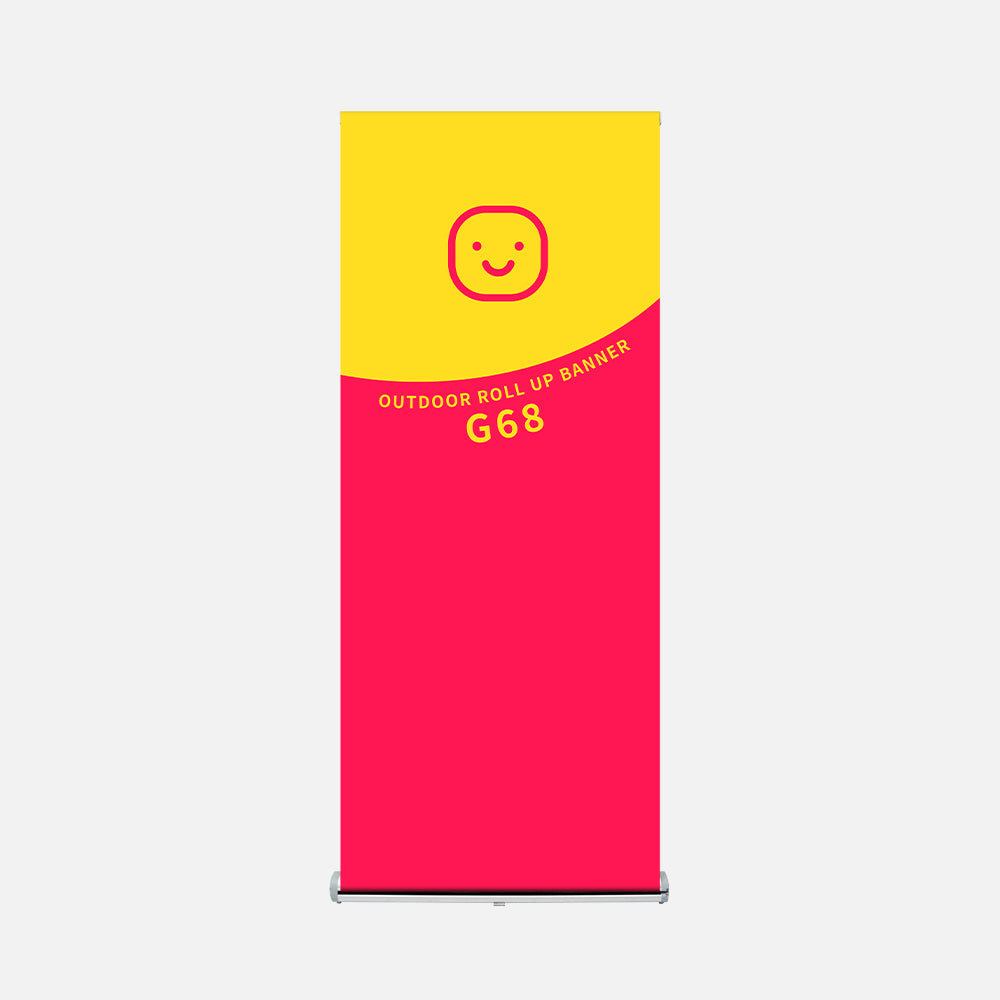

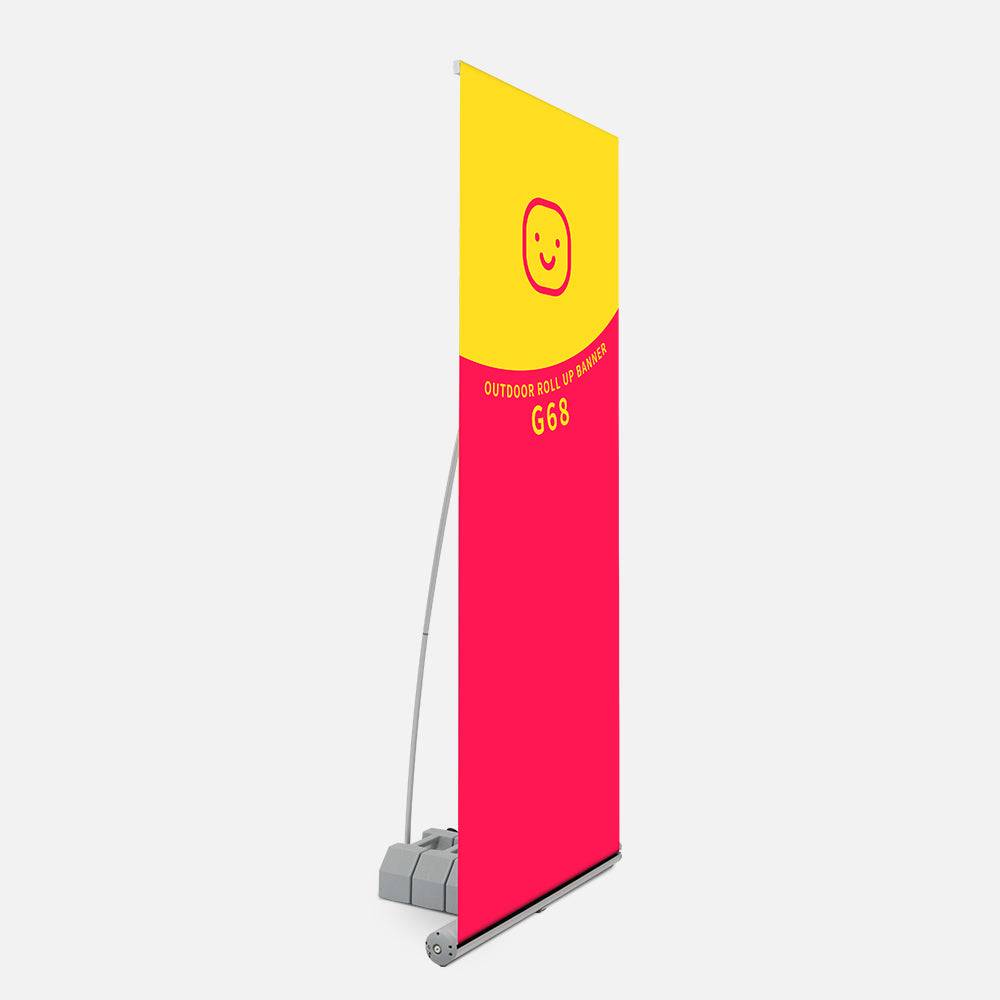

Outdoor Roll Up Banner G68（850*2000）
Price includes GST for Australian customers. International customers: local taxes and duties are not included.
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Product Spec: 850x2000mm / 600x1600mm
Product Weight: 6.8kg /5.3kg
Frame Size(WxDxH): 890x500x2050mm / 640x500x1650mm
Frame Main Material: Aluminum Plastic
Accessories: Instruction
Package Bag: EPE Oxford Bag(1pc)
Outer Package Size (WxDxH): Carton 980x160x310mm/ Carton 730x160x310mm
Product Quantity / Outer Carton: 1pc
Graphic: The material of graphic is PVC. Graphic size is 850x2000mm and 600x1600mm. With Water based pigment printing
Introduction:

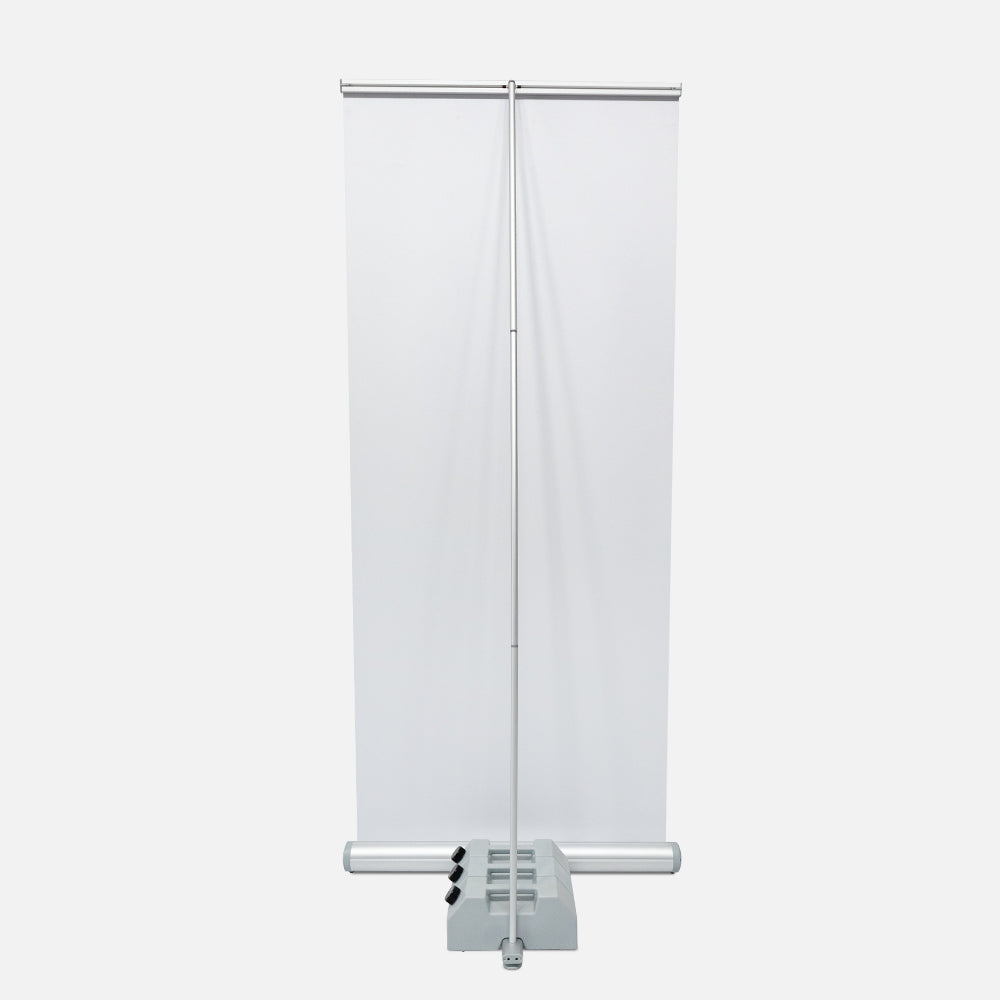

The G68 series is designed for exhibitions, events, and brand roadshows that demand high visibility.
Featuring a reinforced base and enhanced wind-resistant structure, it ensures stable and professional brand presentation even under demanding outdoor conditions.
Application:
Ideal for placement at exhibition entrances, brand zones, or along outdoor fences.
In high-wind environments, add extra weights or secure with ground stakes.
Use designs that highlight your logo and key selling points for strong long-distance visibility.
Product
-
Composition Structure and Core Features
· Heavy-duty aluminum alloy base for superior wind resistance
· High-resolution outdoor-grade printed fabric with vivid, long-lasting colors
· Fixed-height, single-sided upright structure keeps the banner stable without shaking
· Base compatible with sandbags or ground stakes for extra wind protection
· Comes with a professional transport bag to protect the print and frame during transit -
Main Performance and Advantages
· Quick setup for efficient and time-saving booth preparation
· Easy graphic replacement to suit frequently changing exhibition themes
· Clear single-sided display ensures focused brand communication
· Built to withstand outdoor exposure — UV-resistant, waterproof, and windproof
· Lightweight structure saves booth space and reduces transportation costs
-
Complete set
1. Plastic strip
2. Graphic
3. Poster bar

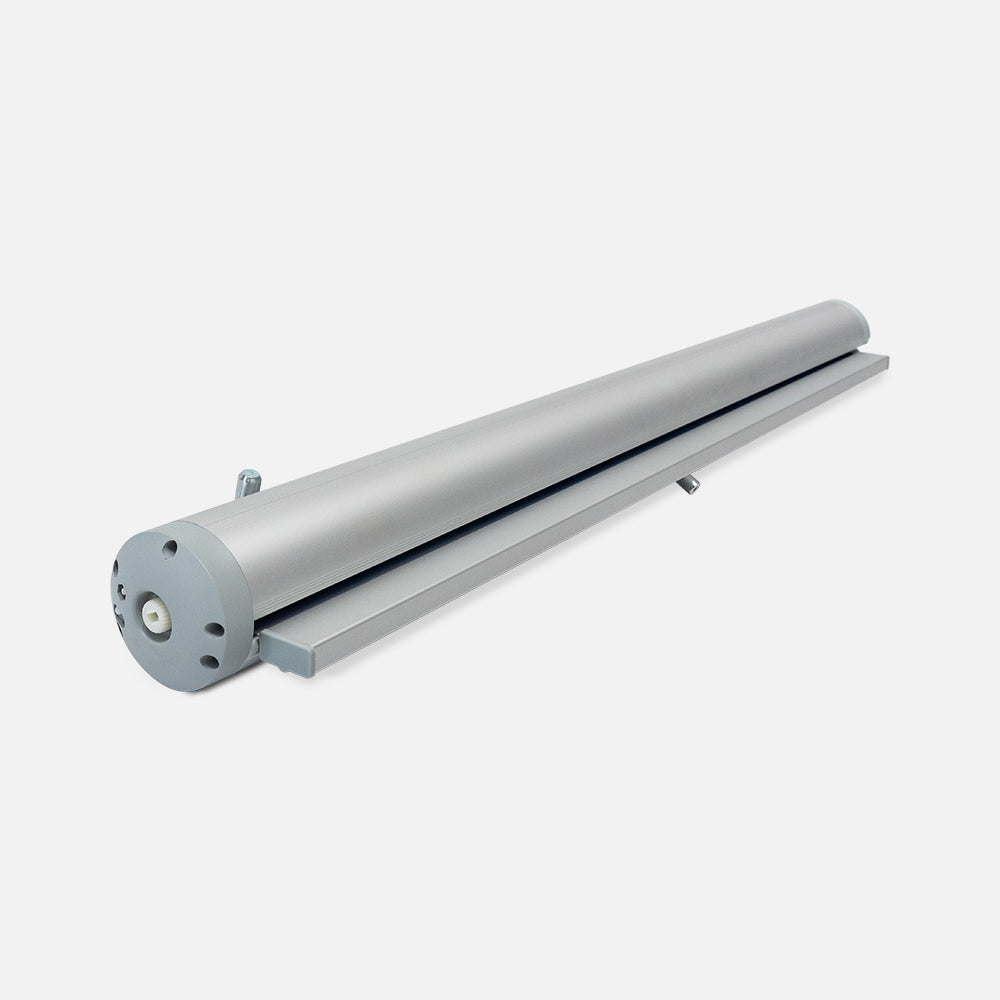

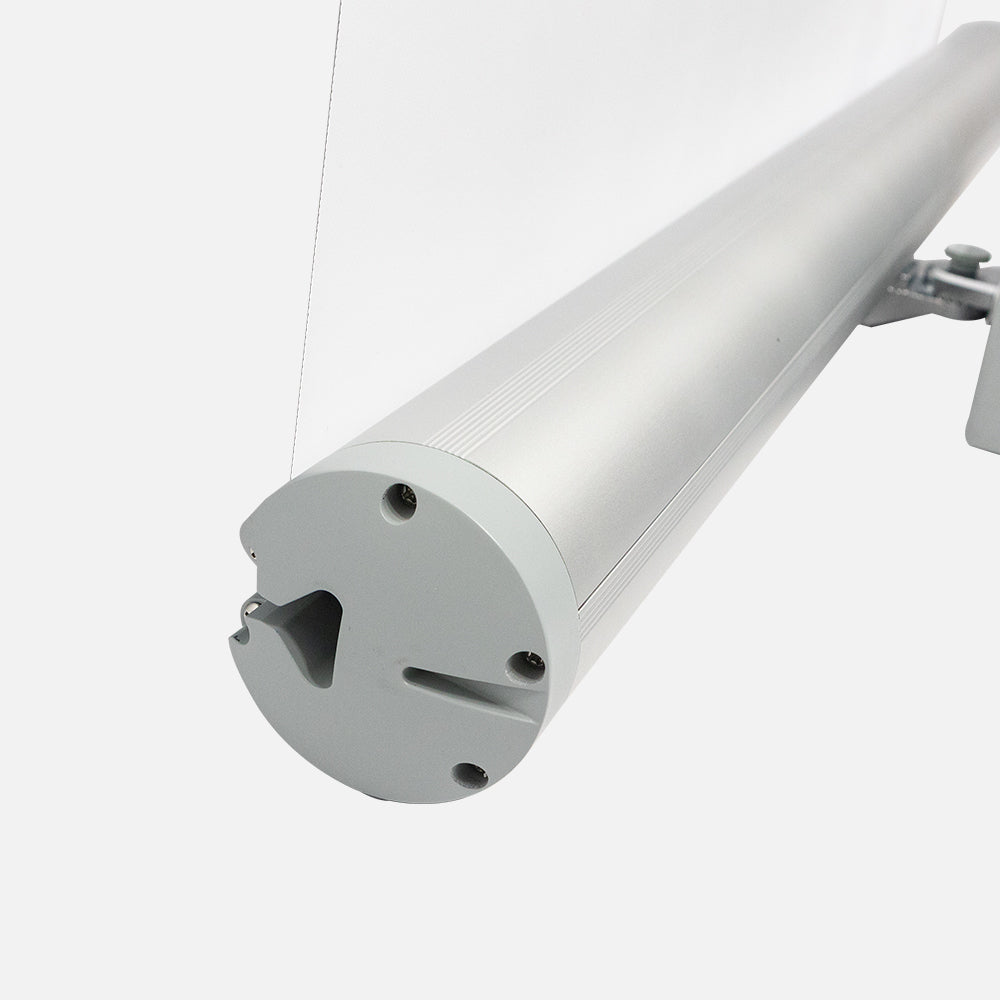

4. Aluminum main body
5. Trinodal pole
6. Water tank -
Graphic assemble instruction
1. Tear off the 3M double-sided tape. Put the graphic facing upward, paste the two ends of the picture along the positioning line of the plastic strip.
-
Graphic assemble instruction
2. Turn the lid.
(Please note that both end caps have one side with a positioning) -
Graphic assemble instruction
3. With the head of the pole facing up, fold the graphic in half once and insert the graphic with the another side facing up. And close the lid.
-
Graphic assemble instruction
4.Bend the graphic and align it with the slot into the base.And insert the graphic into the base.
-
Graphic assemble instruction
5.Hold the poster , pull out the lock pin.
(It is used to prevent graphic from being retracted into the base.)
-
Graphic assemble instruction
6. Let the poster scroll into the base slowly, then finish the installation.
-
Product assemble instruction
1. Loosen the knob counterclockwise, then open the base feet corner to 90° and then tighten the knob clockwise.
-
Product assemble instruction
2. Unfold the trinodal pole.
-
Product assemble instruction
3. Pull out the graphic.
-
Product assemble instruction
4. Insert the trinodal pole to the base feet.
-
Product assemble instruction
5.Pull out the graphic. (Keep pulling out the graphic vertically.)
-
Product assemble instruction

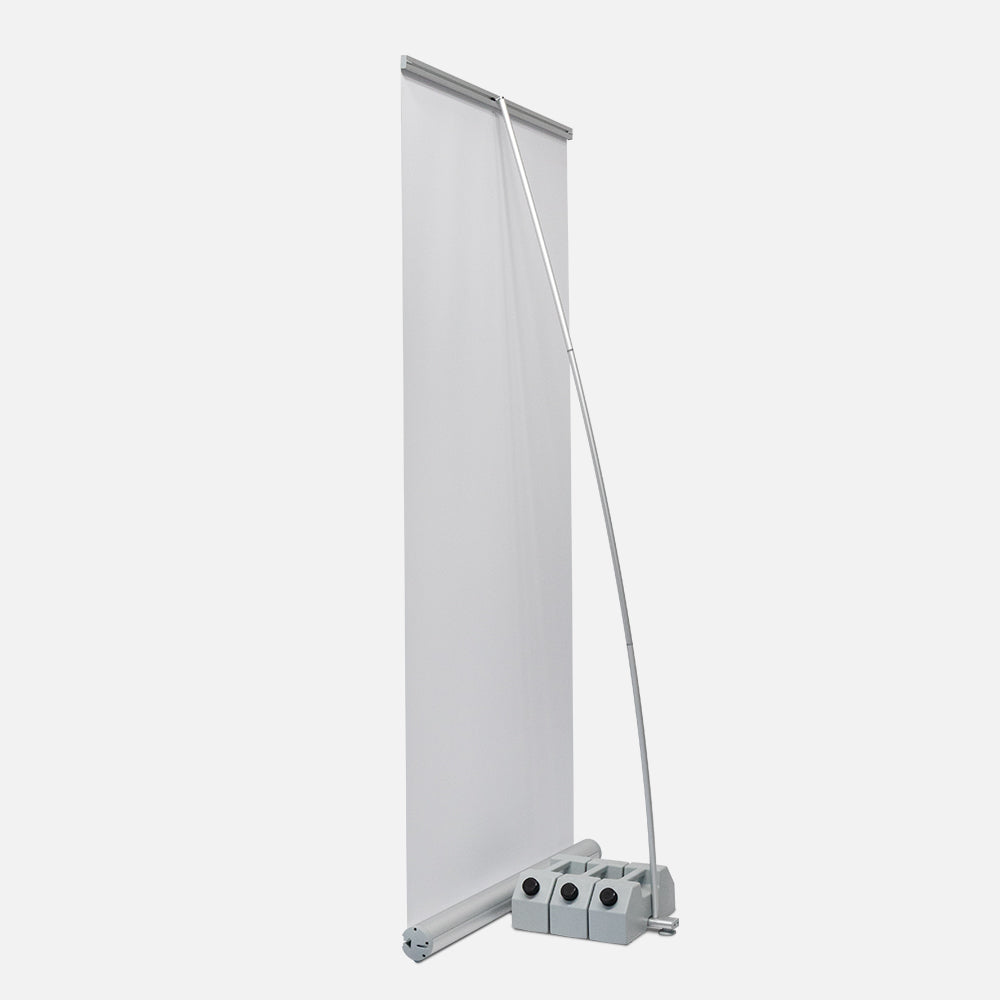

6.Attach to the trinodal pole.
-
Product assemble instruction
7.Fill the water tank with about 5KG of sand (or 3L of water) and tighten the lid.
-
Product assemble instruction

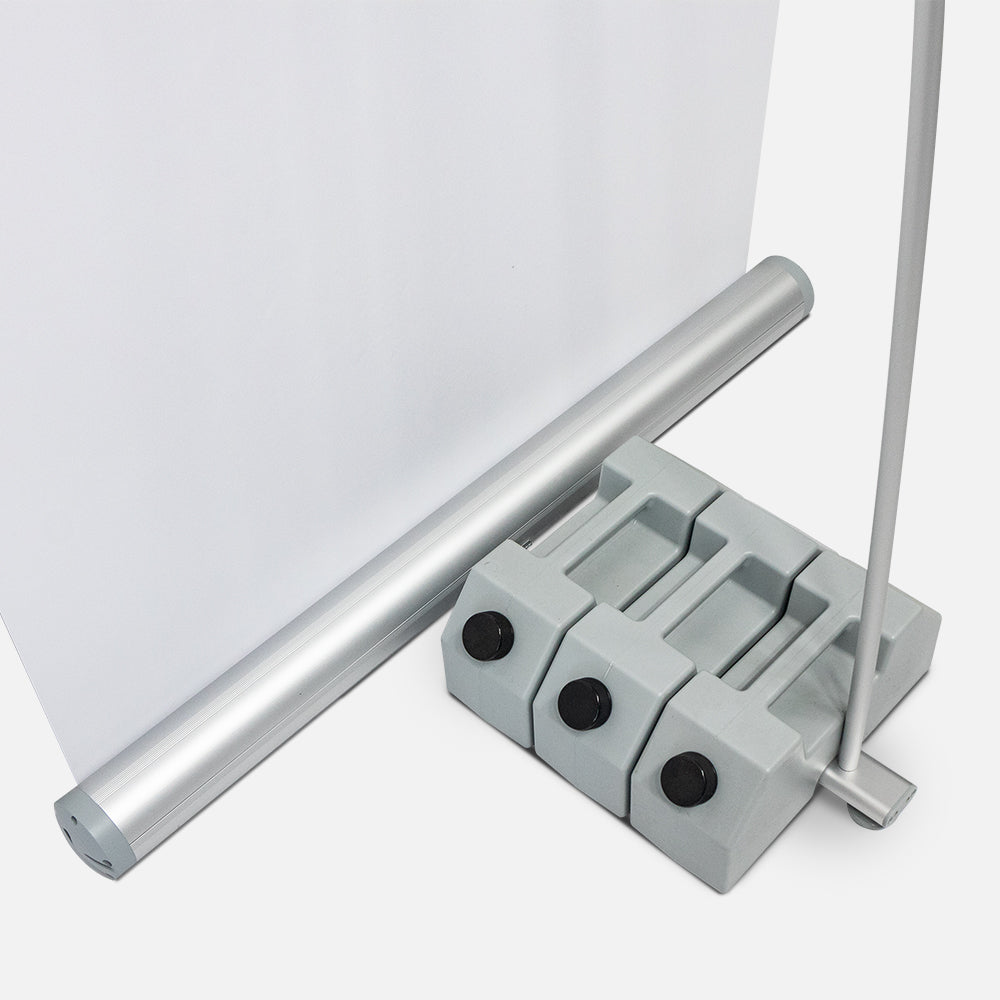

8.Put the water tank on the base feet.
-
Function instruction

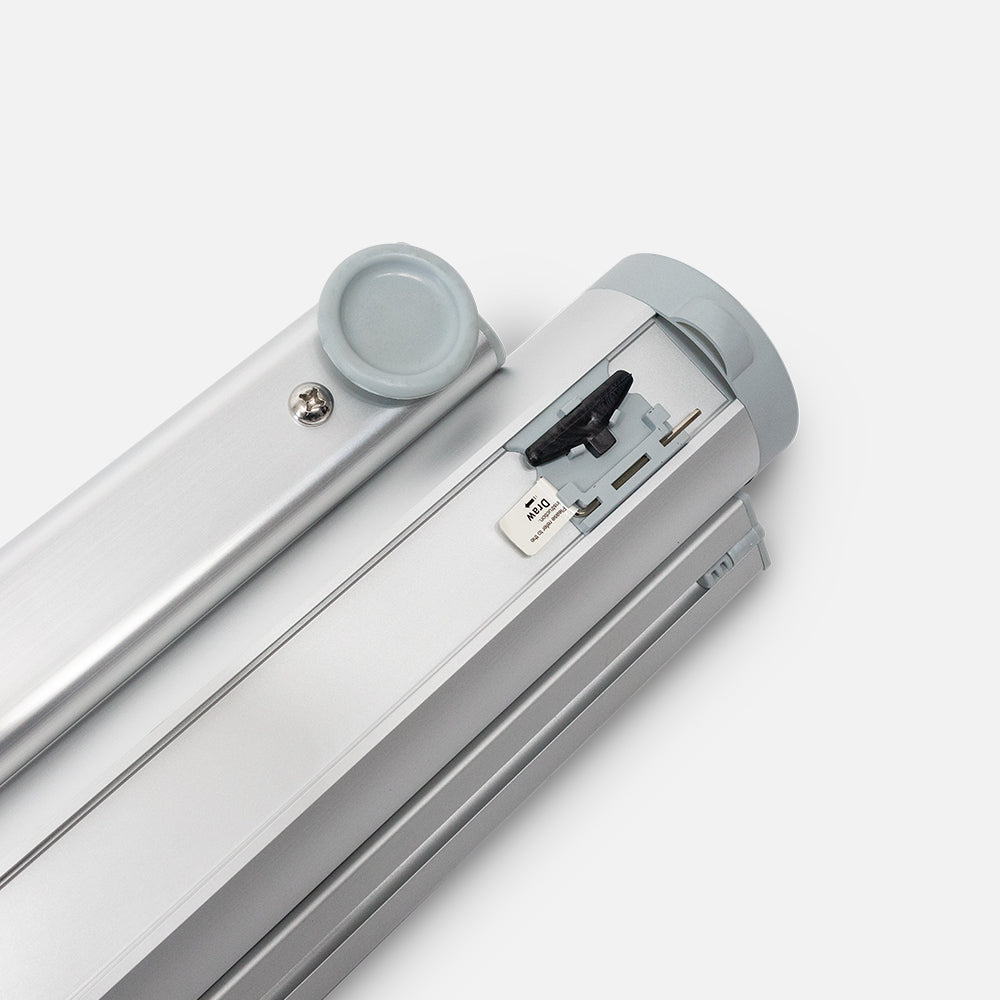

Step1：First, move the lever on the side to release the spring and pull out the banner completely.
-
Function instruction
Step2：Then, pull the picture slot out from the side to align it with the banner outlet.
-
Function instruction
Step3：Insert the lock pin into the hole on the side.
-
Function instruction

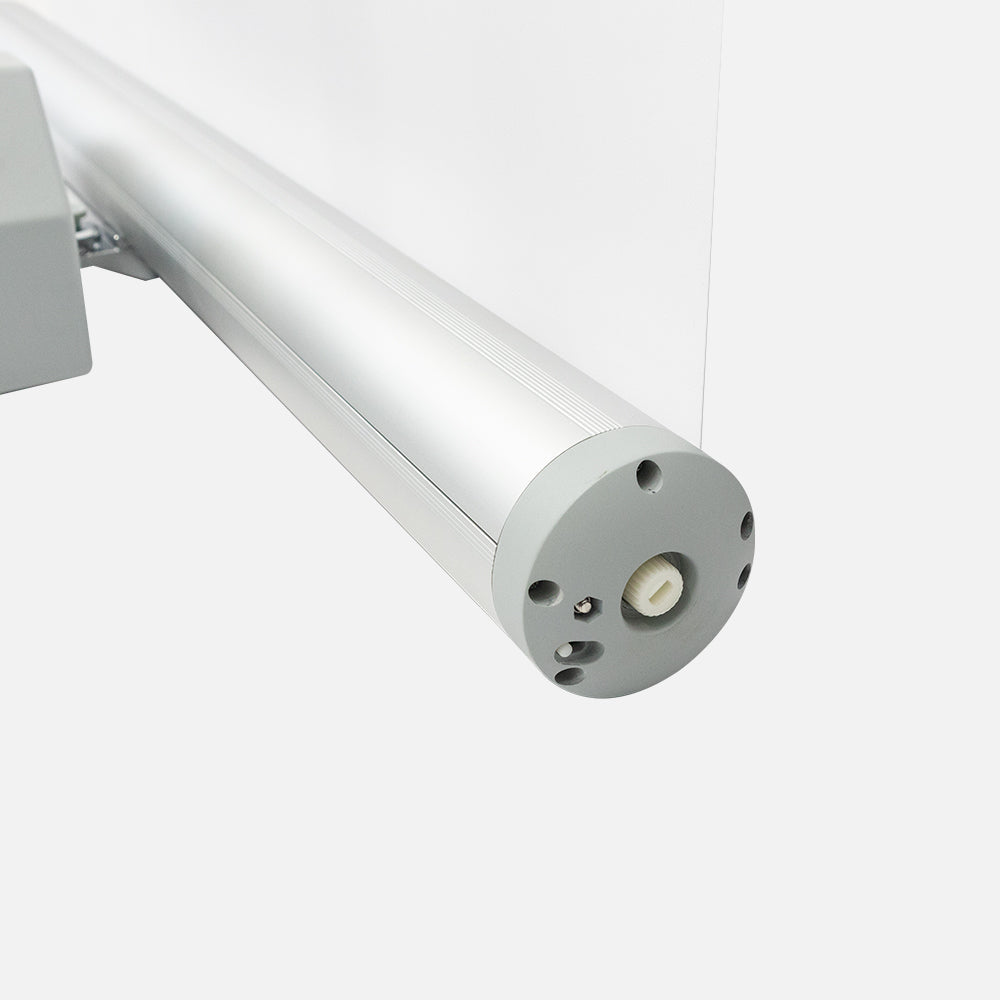

Step4：Remove the knob from the bottom of the base and insert it into the slot on the side. Then turn it clockwise 25 times. Step5：Finally, repeat the steps to install the graphic.
-
Tips.1
Do not pull out the side latch before the banner is installed. This will cause the spring inside the base to release. If you accidentally pull out the latch, please follow step 3 and step 4 of "Replace Banner" instructions.
-
Tips.2
Please place the lock pin and knob in the dedicated slot at the bottom of the base when not in use, to prevent loss.
-
Packaging information
1.Outer package (carton)
2.Portable Oxford bag
3.Inner box (carton)
4.Shrink pocket
-
Graphic information
printing size: 850x2085mm
printing material: PVC
Thickness: 0.3mm
Gram weight: 480gsm
Printing method: 6-color printing -
Because this product is popular across different countries and industries, our customers often refer to it by various names in their own familiar language.
Exhibition Outdoor Roll-Up Banner ｜ Brand Display Stand ｜ Event Pull-Up Banner ｜ Wind-Resistant Display
Video
Parameter
At-show Roll Up Banner G68
| Product Name | Outdoor Roll Up Banner | Outdoor Roll Up Banner |
| Product Code | G68 | G68 |
| Product Spec | 850x2000mm(33.5×78.4in) | 600x1600mm(23.6×63in) |
| If it can be customized | N/A | N/A |
| Product Feature |
Product Frame Specs
| Frame Size | 890x500x2050mm(35×19.7×80.7in) | 640x500x1650mm(25.2x19.7x65in) |
| Frame Main Material | Aluminum Plastic | Aluminum Plastic |
| Frame Weight | ||
| Outer Package Weight(1pcs) | 6.8kg(15LB) | 5.3kg(11.7LB) |
| Accessories | Instruction | Instruction |
Product Package Specs
| Package Bag | EPE Oxford Bag(1pcs) | EPE Oxford Bag(1pcs) |
| Inner Package Size | N/A | N/A |
| Product Quantity / Inner Carton | N/A | N/A |
| Outer Package Size | Cardboard Box 980x160x310mm(34.3×6.3×12.2in) | Cardboard Box 730x160x310mm(28.7×6.3×12.2in) |
| Product Quantity / Outer Carton | 1pc | 1pc |
| Total Outer Package Weight | 6.8kg(15LB) | 5.3kg(11.7LB) |
Graphic Specs
| Graphic Size | 850x2000mm(33.5×78.4in) | 600x1600mm(23.6x63in) |
| Graphic Material | PET | PET |
| Thickness of Graphic Material | 0.21mm | 0.21mm |
| Grammage of Graphic Material | 200g/㎡ | 200g/㎡ |
| Printing Technology | Water based pigment printing | Water based pigment printing |
Product Shiping Specs
| 20GP(General Purpose Container) | 570pcs | 750pcs |
| 40GP(General Purpose Container) | 1180pcs | 1560pcs |
| 40HQ(High Cube Container) | 1380pcs | 1830pcs |
| Express Service | Available, MOQ: 1pc | Available, MOQ: 1pc |
Product Maintenance
| Warranty | 365D(exclude force majeuce,aritificial factors) | 365D(exclude force majeuce,aritificial factors) |
Download
| Outdoor Roll Up Banner G68(600*1600mm) | |||
|---|---|---|---|
| Product Name | Product Specification | Product Stats | Product Download |
| Outdoor Roll Up Banner G68 | 600*1600mm |  |
|
| Outdoor Roll Up Banner G68 | 600*1600mm | AI |  |
| Outdoor Roll Up Banner G68 | 600*1600mm | CDR |  |
| Outdoor Roll Up Banner G68(850*2000mm) | |||
| Product Name | Product Specification | Product Stats | Product Download |
| Outdoor Roll Up Banner G68 | 850*2000mm | |
|
| Outdoor Roll Up Banner G68 | 850*2000mm | AI | |
| Outdoor Roll Up Banner G68 | 850*2000mm | CDR | |
