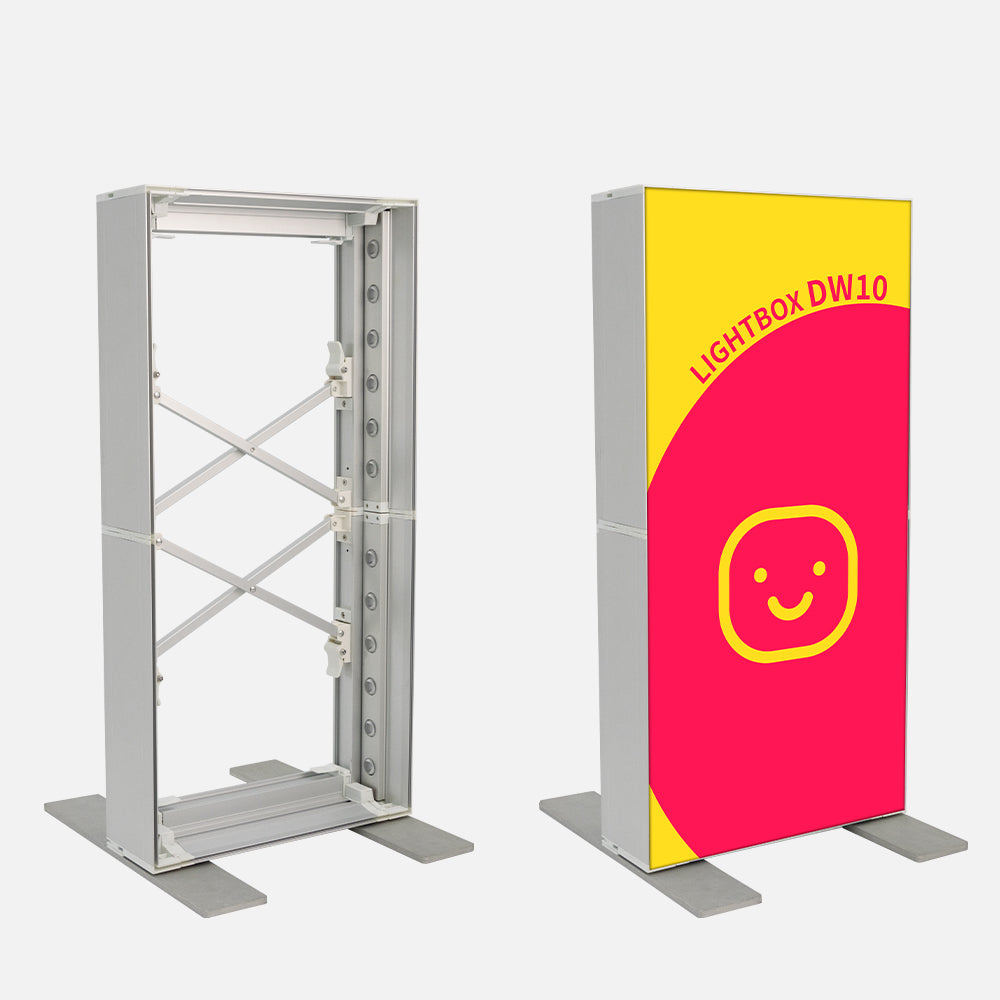

Lightbox DW10（Frame + Printed Graphic）
1000 × 2000 mm backlit display lightbox
Local customs duties are included.
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Main Introduction

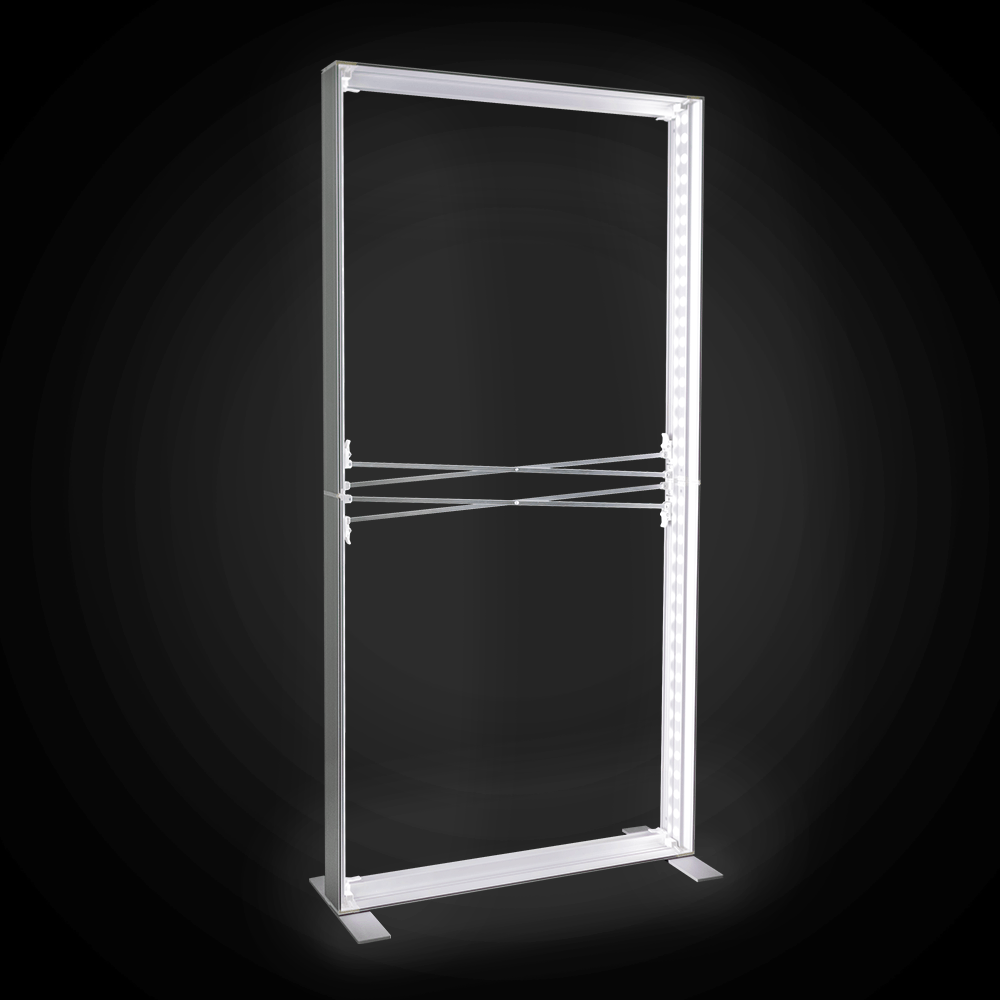

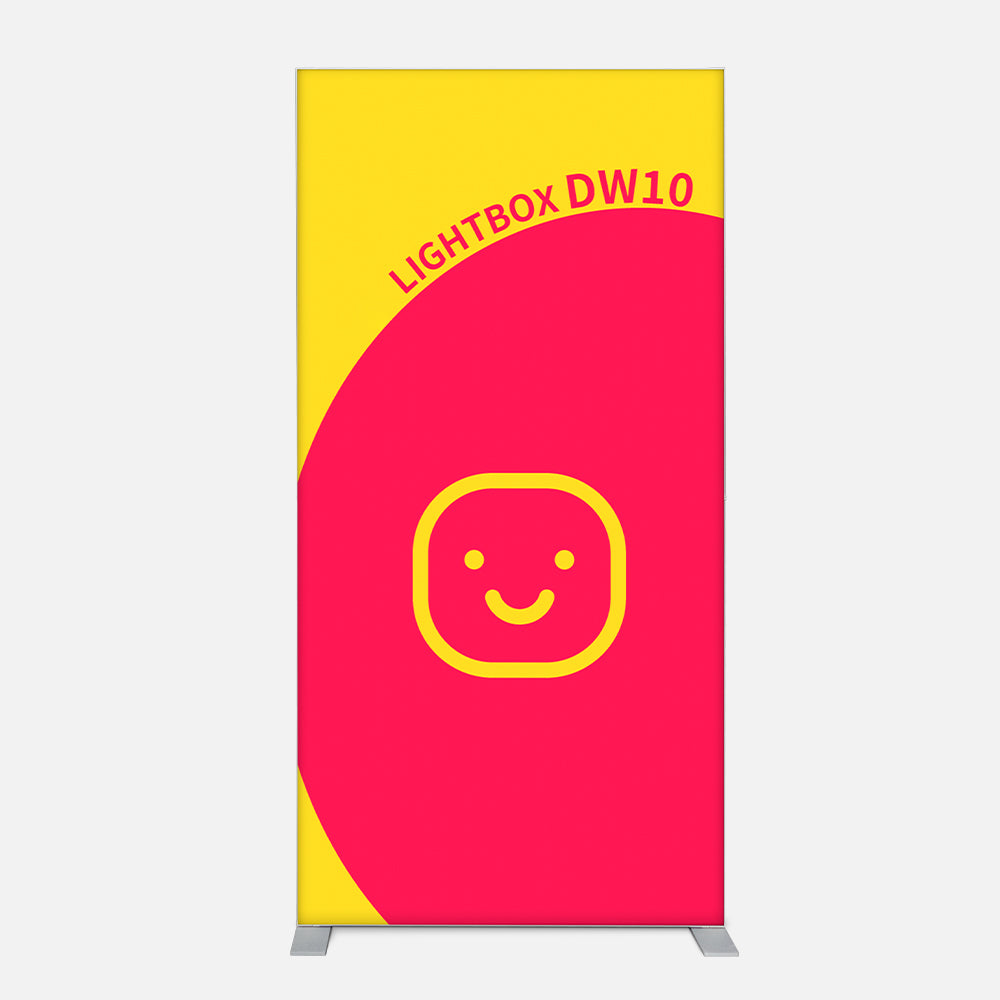

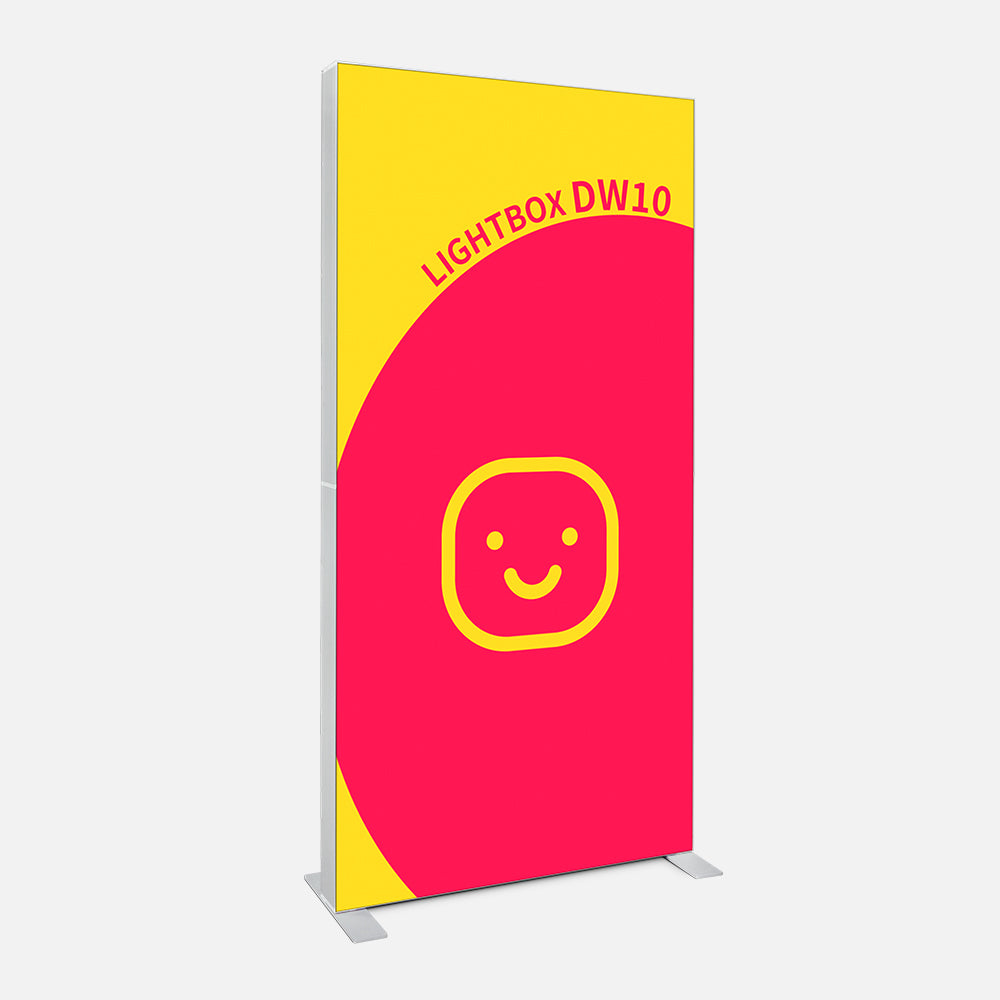

The DW10 is a 1000 × 2000 mm backlit display lightbox featuring edge-lit LED technology combined with a sturdy aluminum frame and silicone-edge fabric graphic (SEG).
It brings powerful visual impact and premium brand presentation to flagship stores, mall windows, and high-end event venues.
Composition Structure and Core Features

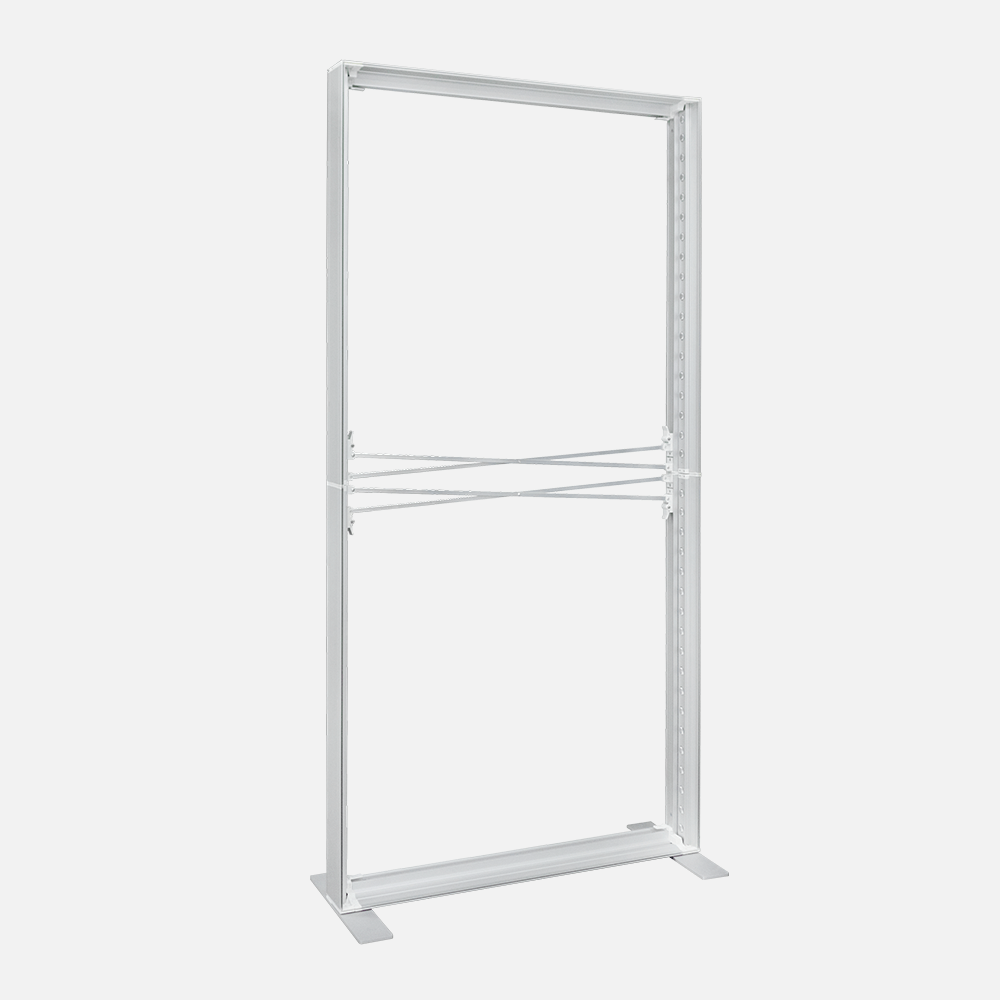

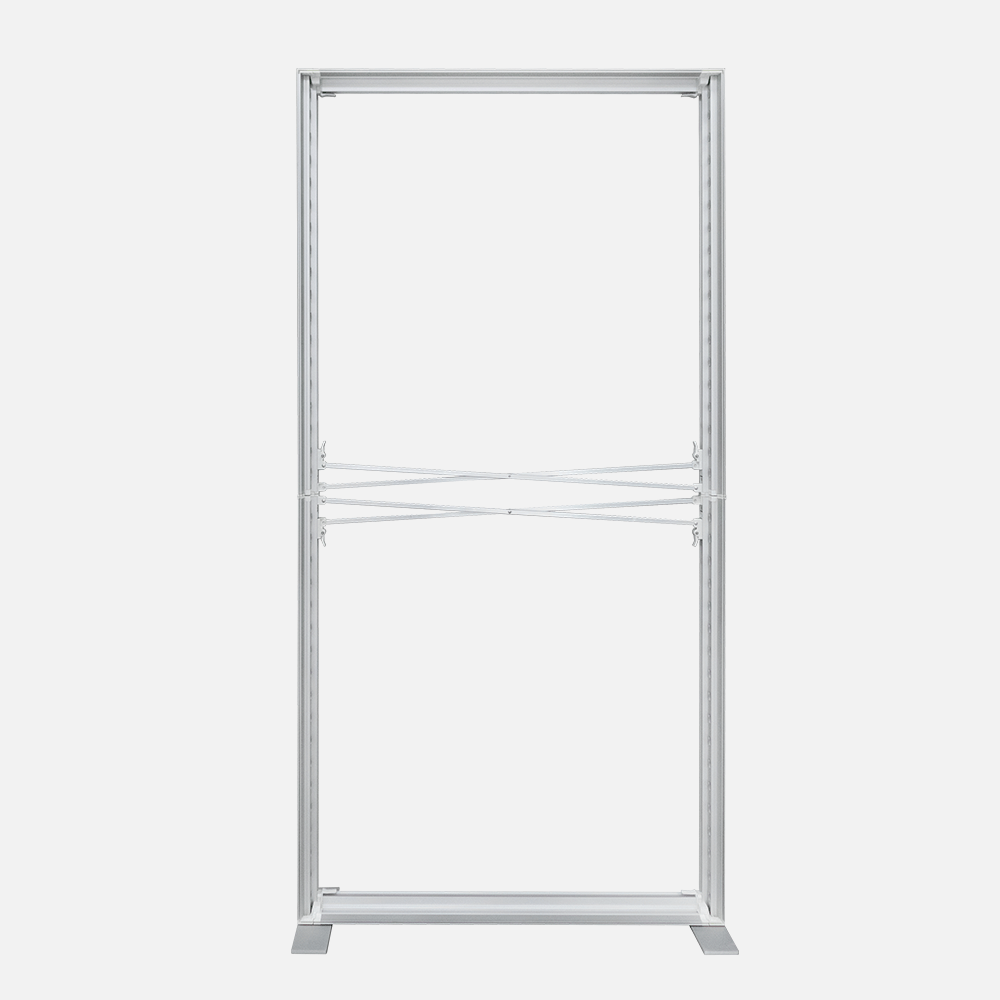

· Frame: Aluminum alloy structure + plastic LED module connectors (approx. 110 mm thick)
· Light Source: Edge-lit rigid LED strips (approx. 87W, color temperature 6000K)
· Graphic Material: 1000 × 2000 mm silicone-edge fabric + blackout backing
· Dimensions & Weight: Frame approx. 1000 × 400 × 2010 mm; net weight approx. 11.6 kg
Application Recommendations
Mall Flagship Windows: Acts as a focal visual background to attract shoppers
Exhibition or Launch Entrances: Ideal for welcome zones and branding displays
High-end Showrooms or Experience Areas: Creates immersive brand environments
Product
-
Main Performance and Advantages

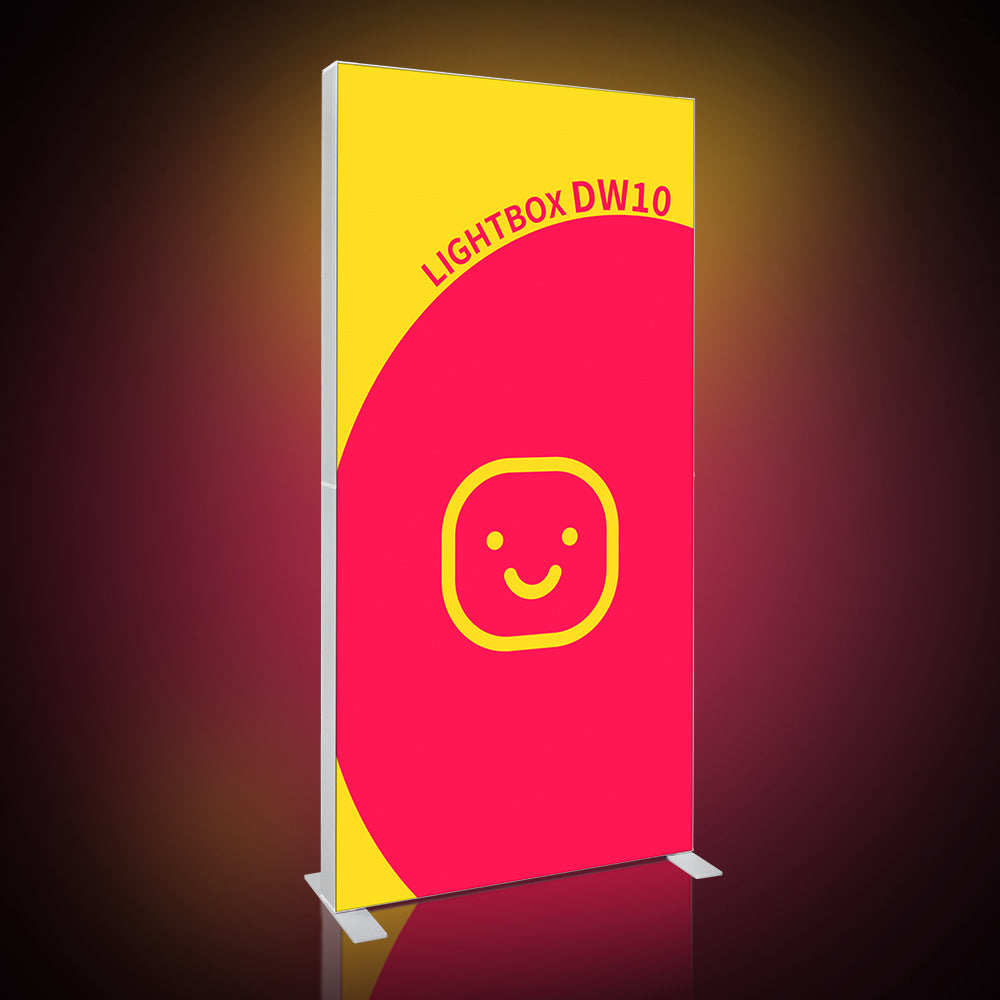

· Premium Visual Effect: Backlit illumination enhances image brightness and contrast for elevated brand display
· Elegant Build: Thick aluminum frame and balanced lighting provide a flagship-store-level appearance
· Modular Installation: Despite its high-end quality, the structure allows fast setup and dismantling
· Replaceable Graphics: SEG fabric panels are easily changeable for different events and campaignsProduct size:1000x400x2000mm
(39.4x15.7x78.7in) -
Product features
The new version of the power supply connection. (simple integrated design)
The old version of the power supply connection. (cumbersome and inconvenient)
-
Complete set
1.Top cross pole
2.The top part of lamp pole
3.The bottom part of lamp pole
4.Bottom cross pole
5.Graphic
6.Blackout cloth
7.Base feet
8.Power adapter -
Product assemble instruction
1.Unfold the bottom part of the lamp pole then lock it tightly.
-
Product assemble instruction

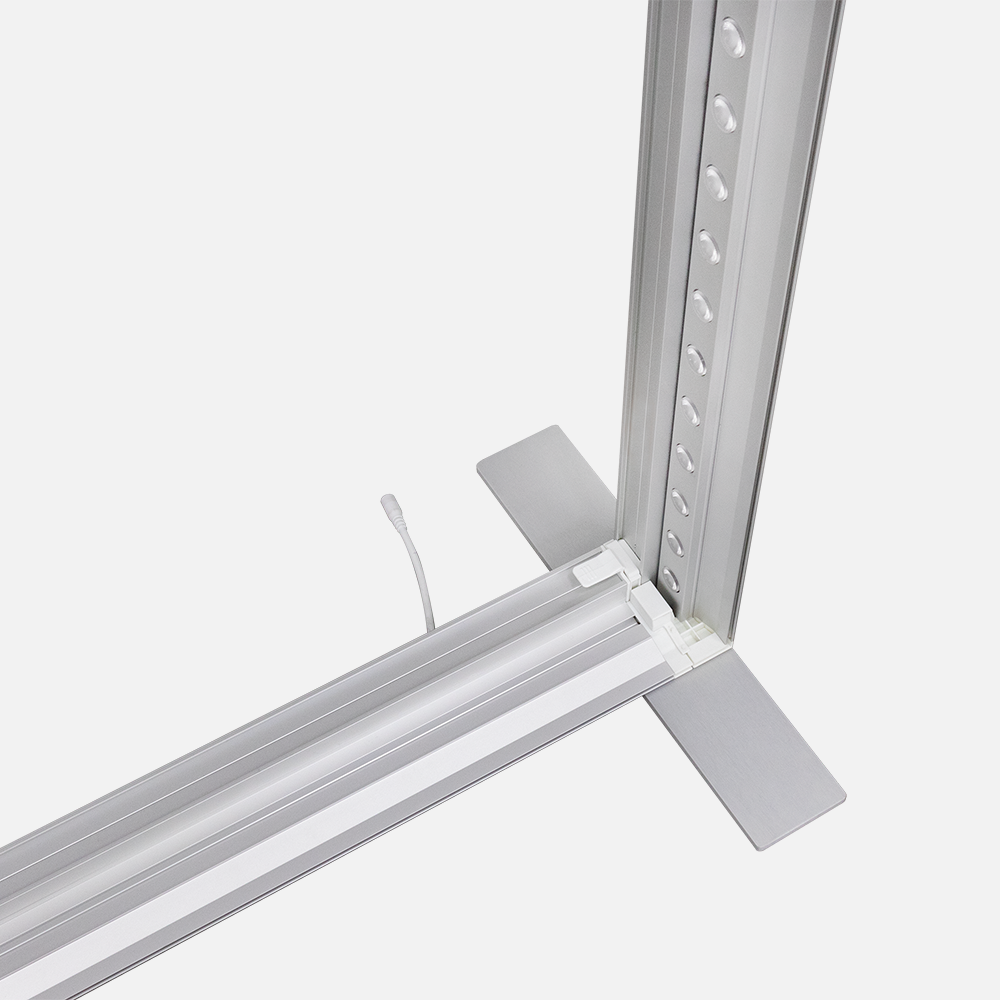

2.Connect the bottom part of the lamp pole to the bottom cross bar. -
Product assemble instruction
3.Insert the bottom corner into the hole on the bottom part of the lamp pole.
(! Note Bottom corner interconnection: The long end of the bottom corner is in the front, and the short end is on the same side as the power cable interface.)
-
Product assemble instruction
4.Unfold the top part of the lamp pole then lock it tightly. -
Product assemble instructionz

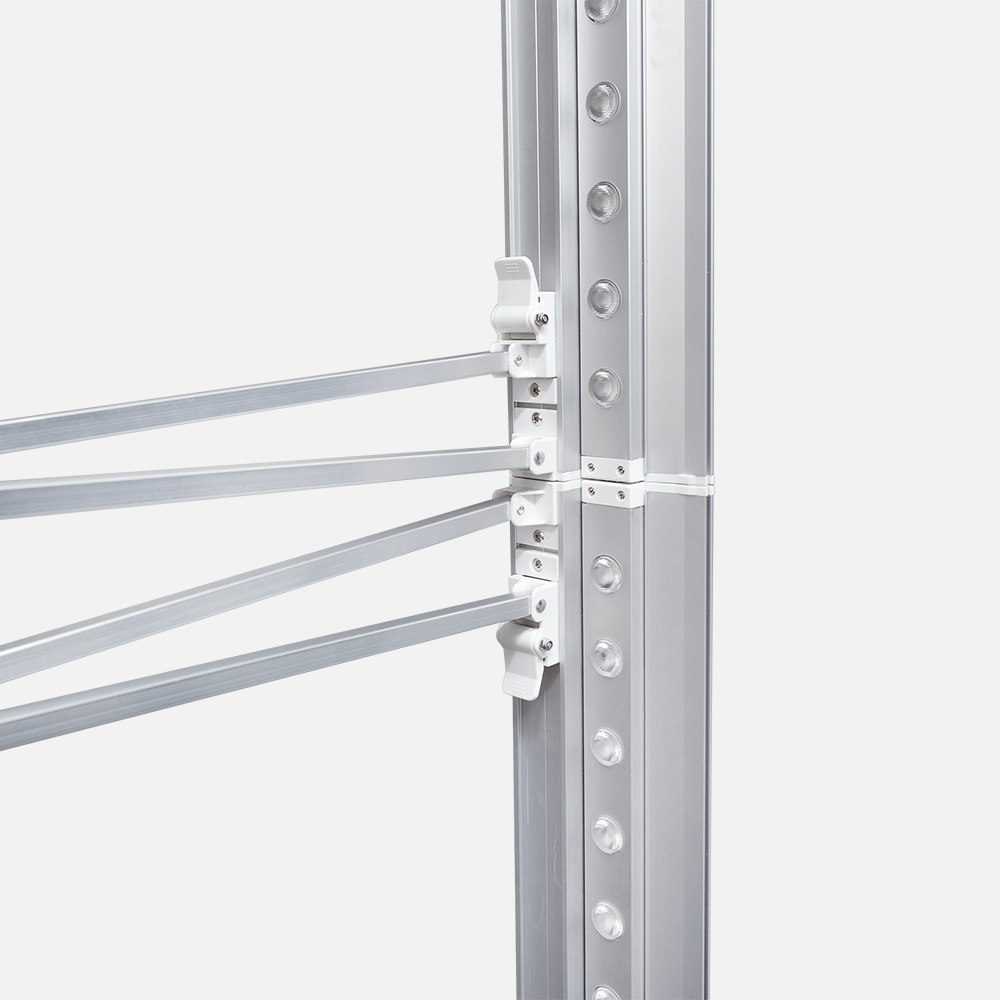

5.Connect the top part of the lamp pole to the bottom part.
-
Product assemble instruction
6.Connect the top cross bar to the upper part of the lamp pole. -
Product assemble instruction
7.Assemble the graphic.
-
Product assemble instructionx
8.Turn on the power. -
Photoelectric parameters
(Light box Specification:1000x2000mm)
Light Source：LED edge lit
Input voltage: 110V/220V
Electric current: 0.4/0.85A
Total power: 87W
Color temperature：6000K
-
Graphic information
visual size：1000x2000mm
printing size: 1030x2030mm -
Packaging information
Wheeled bag
size：1110x350x290mm（43.7x13.8x11.4 in）
-
Because this product is popular across different countries and industries, our customers often refer to it by various names in their own familiar language.
Backlit Lightbox｜LED Display Frame｜Flagship Store Display｜Premium Graphic Stand
Video
Parameter
AT-SHOW Lightbox DW10
| Product Name | Lightbox |
| Product Code | DW10 |
| Product Spec | 1000x2000mm(39.4×78.7in) |
| If it can be customized | Available |
| Product Feature |
Product Frame Specs
| Frame Size | 1000x400x2010mm(39.4x15.7x79.1in) include feet length |
| Frame Main Material | Aluminum and Plastic |
| Frame Weight | 11.6kg(25.5LB) |
| Outer Package Weight(1pc) | 23kg(50.6LB) |
| Accessories | Instruction, Power Cable |
Electric Parameter
| Light Source | LED edgelit |
| Color temperature | 6000K |
| Total Power | 87W |
| Input current | 0.4/0.85A |
| Input Voltage | 110V/220V |
Product Package Specs
| Package Bag | Wheeled bag |
| Inner Package Size | N/A |
| Product Quantity / Inner Carton | N/A |
| Outer Package Size | Carton 1210x310x400mm(47.6×12.2×15.7in) |
| Product Quantity / Outer Carton | 1pc |
| Total Outer Package Weight | 23kg(50.6LB) |
Graphic Specs
| Graphic Size | 1000x2000mm(39.4×78.7in) |
| Graphic Material | Polyester |
| Thickness of Graphic Material | 0.3mm |
| Grammage of Graphic Material | 190g/㎡ |
| Printing Technology | Direct Sublimation Printing |
Product Shipping Specs
| 20GP(General Purpose Container) | 180pcs |
| 40GP(General Purpose Container) | 380pcs |
| 40HQ(High Cube Container) | 450pcs |
| Express Service | Available, MOQ: 1pcs |
Product Maintenance
| Warranty | 365D(exclude force majeure, artificial factors) |
FAQ
1. Q: What is the voltage safety like?
A: The unit operates with a dedicated power supply, featuring an input of either 110V or 220V AC, and a safe output of 24V DC for the light box.
2. Q: Is the printing material eco-friendly?
A: It utilizes an eco-friendly digital direct print on chemical fabric, which is recyclable and aligns with environmental sustainability.
3. Q: Is the assembly process complicated?
A: The assembly is straightforward, requiring no tools, and can be easily handled by one person.
4. Q: Can the product be reused?
A: The design allows for easy and convenient printing changes, enabling anyone to update the advertising content at any time and place.
5. Q: Is the lightbox single-sided or double-sided?
A: This is a single-sided lightbox, with the other side being a blackout fabric, making the lightbox very bright and resulting in excellent display effects.
6. Q: Can we use your lightbox in outdoors?
A: The LED module and power supply on our lightbox can not reach the IP65 waterproof level, so it is not recommended for outdoor use for a long time. But if it is short term and weather condition is good, it can be used outdoors.
