SEG Lightbox LS10（Frame + Printed Graphic）
is a lightweight yet high-brightness SEG lightbox
Local customs duties are included.
Couldn't load pickup availability
Delivery
The transportation time is usually 5-30 days
Main Introduction

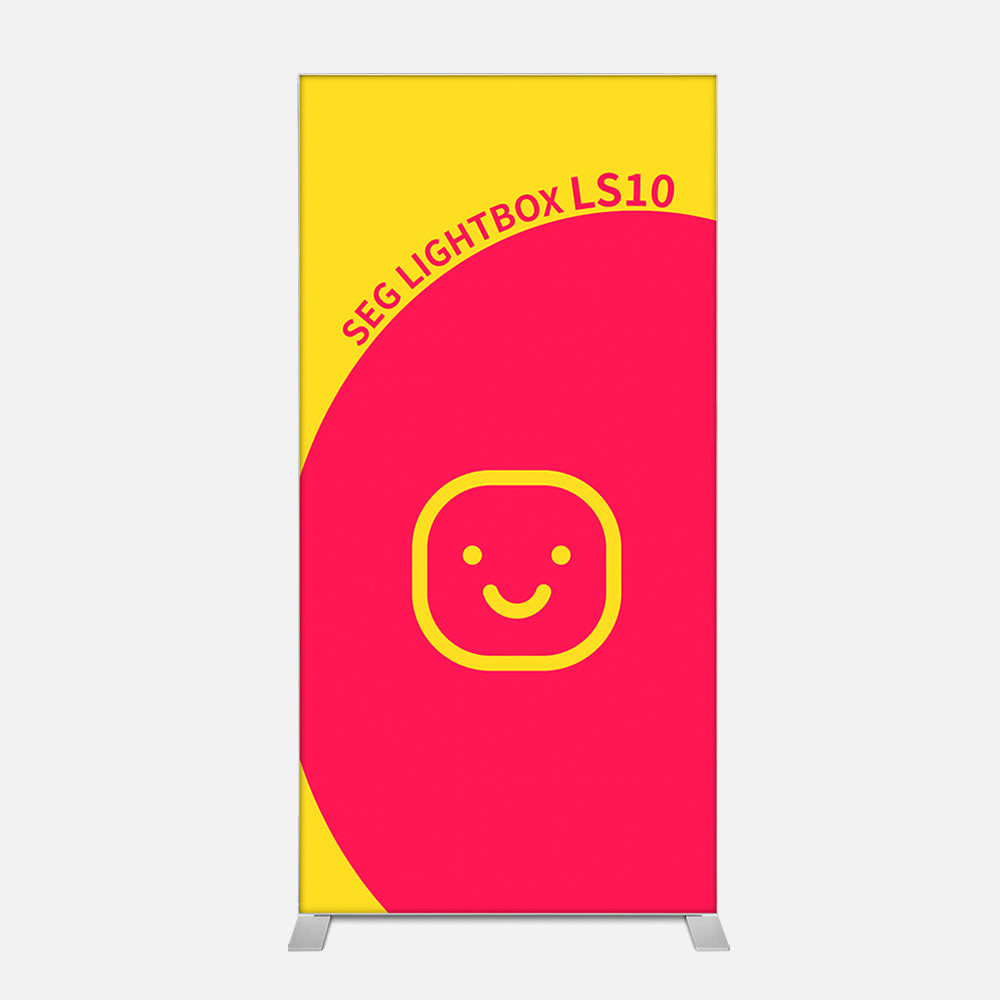

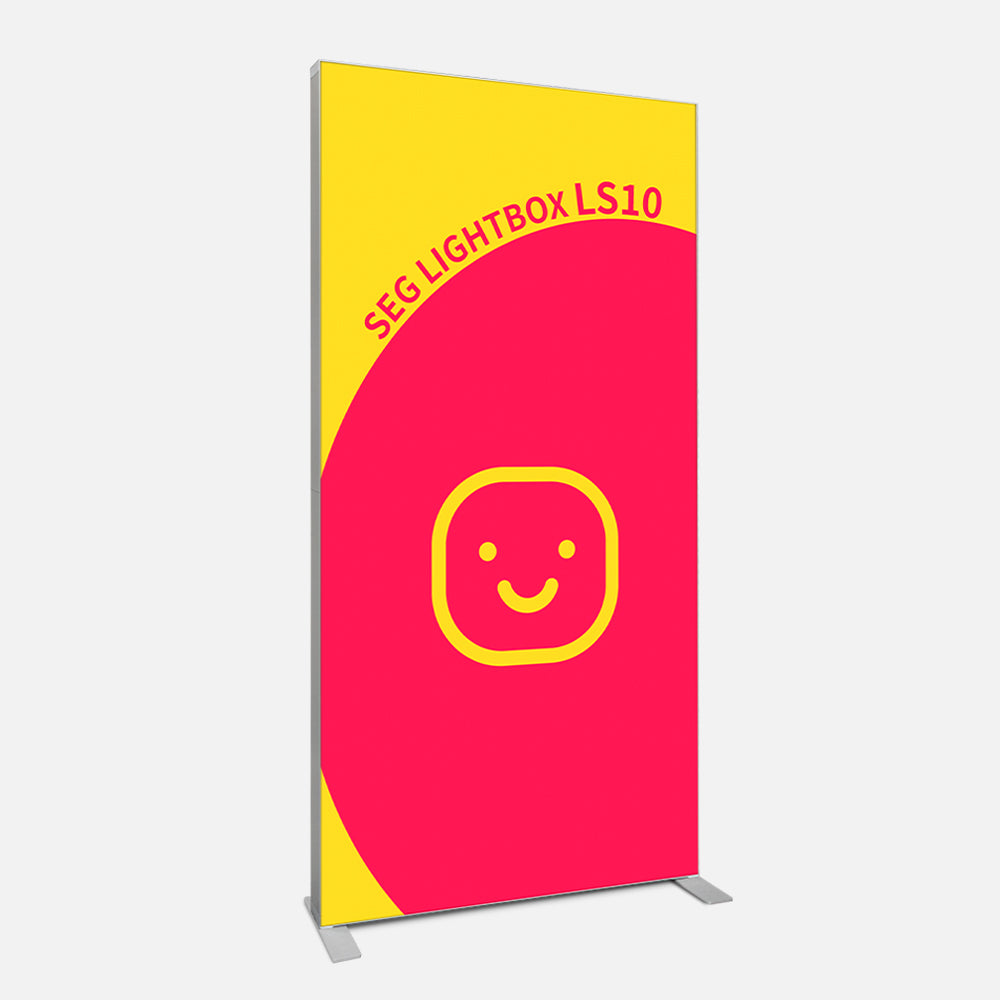

LS10 is a lightweight yet high-brightness SEG lightbox, ideal for brand pop-up stores and fashion events.
It features uniform lighting, a clean frame design, and quick setup, creating an immersive and striking display for temporary events.
Composition Structure and Core Features

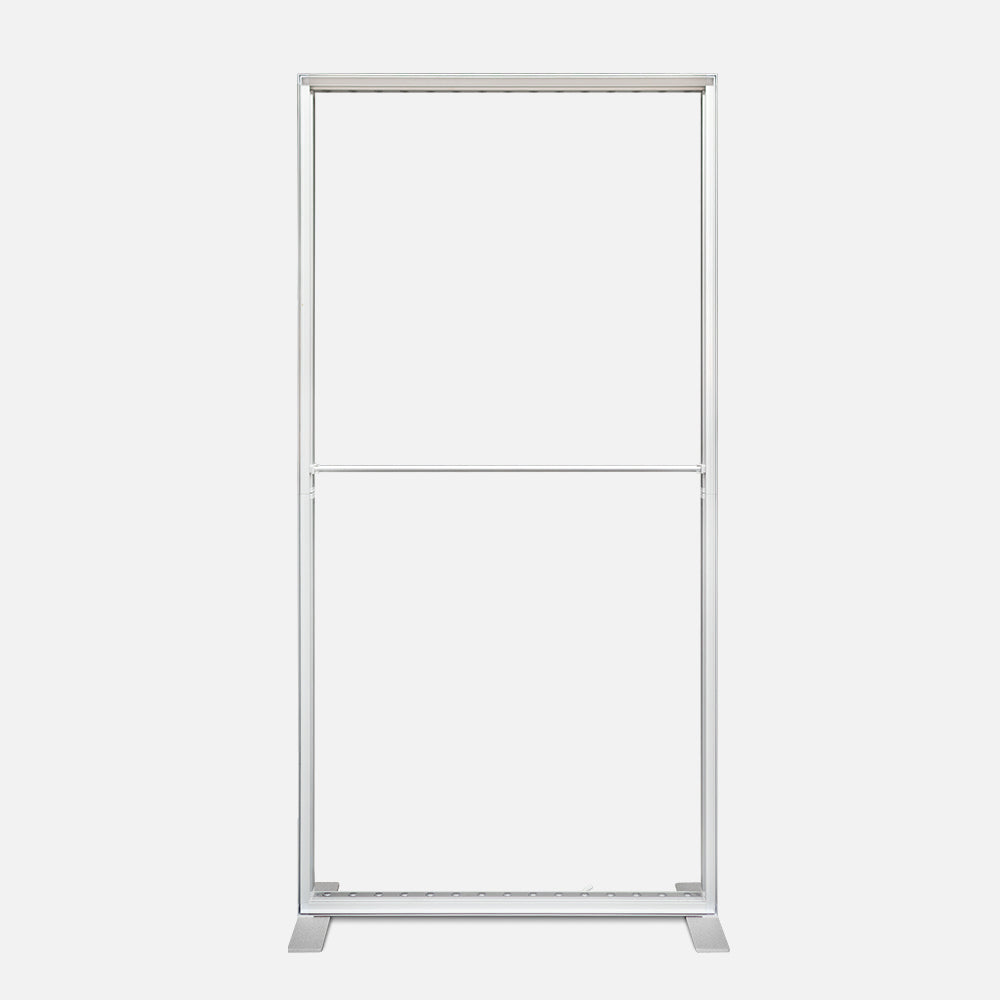

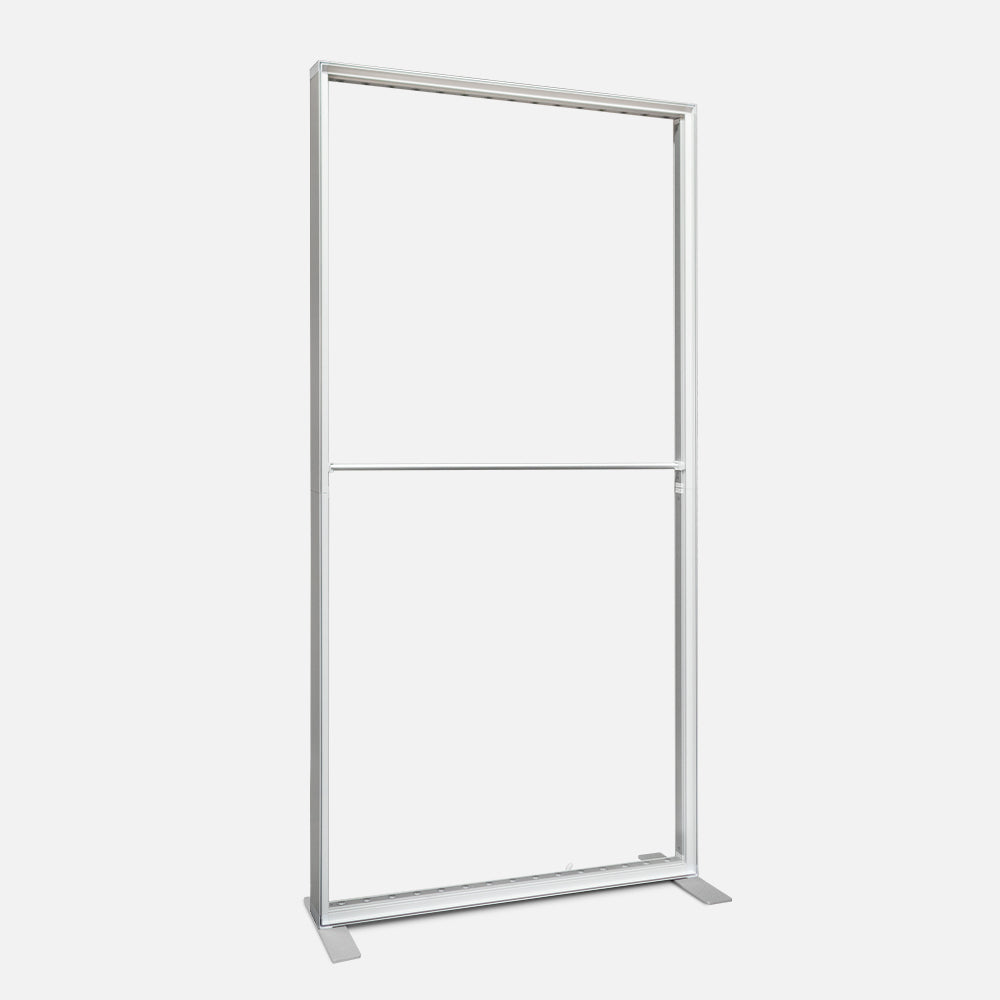

Frame Material: Aluminum alloy with 100 mm outer thickness.

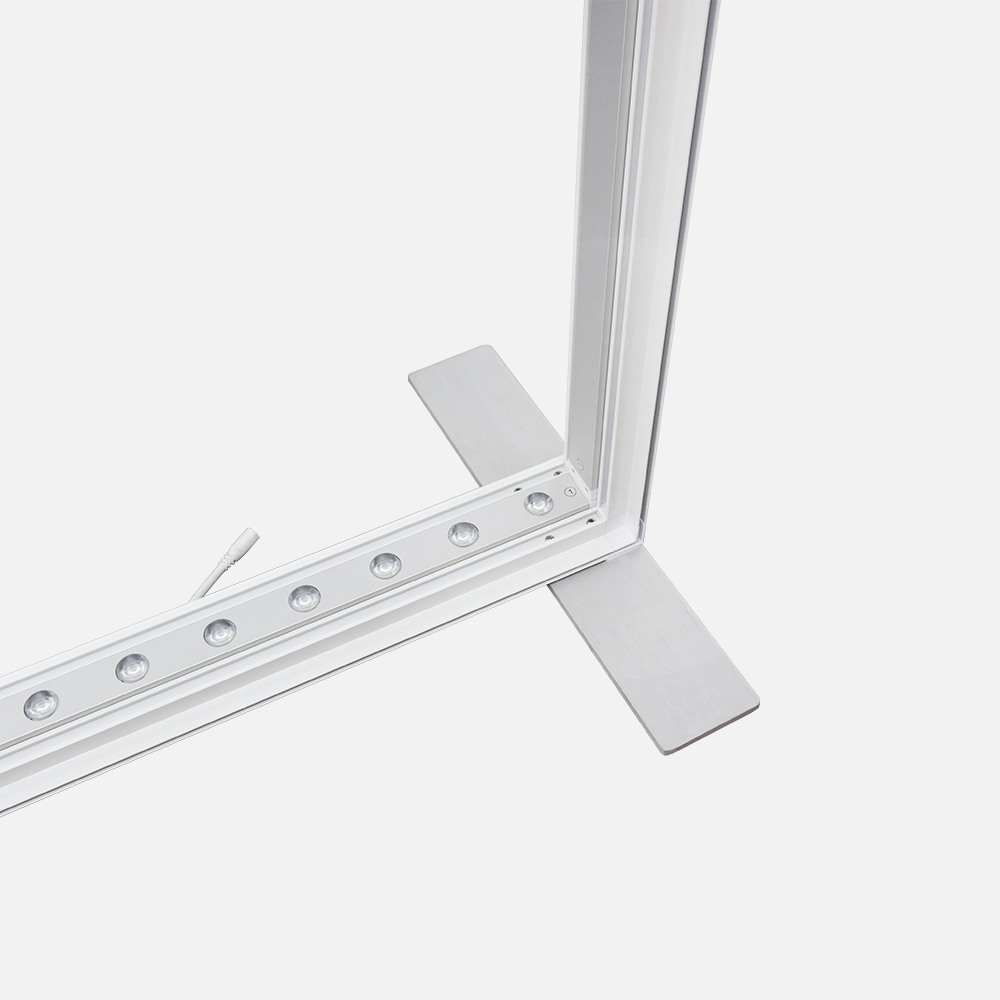

Lighting System: Edge-lit LED strips, approx. 2000 LUX brightness, 90 W power.
Graphic Material: Polyester lightbox fabric (190 g/㎡), double-sided replaceable graphic.
Dimenions: 1000 × 2000 mm, net weight ≈ 11.8 kg.
Assembly: Modular plug-in design for rapid setup and dismantling.
Application Recommendations
Pop-up Stores: Highlight brand visuals or event themes.
Fashion Shows: Display key visuals or promotional posters.
Exhibition Corridors: Create immersive visual atmospheres.
Product
-
Main Performance and Advantages

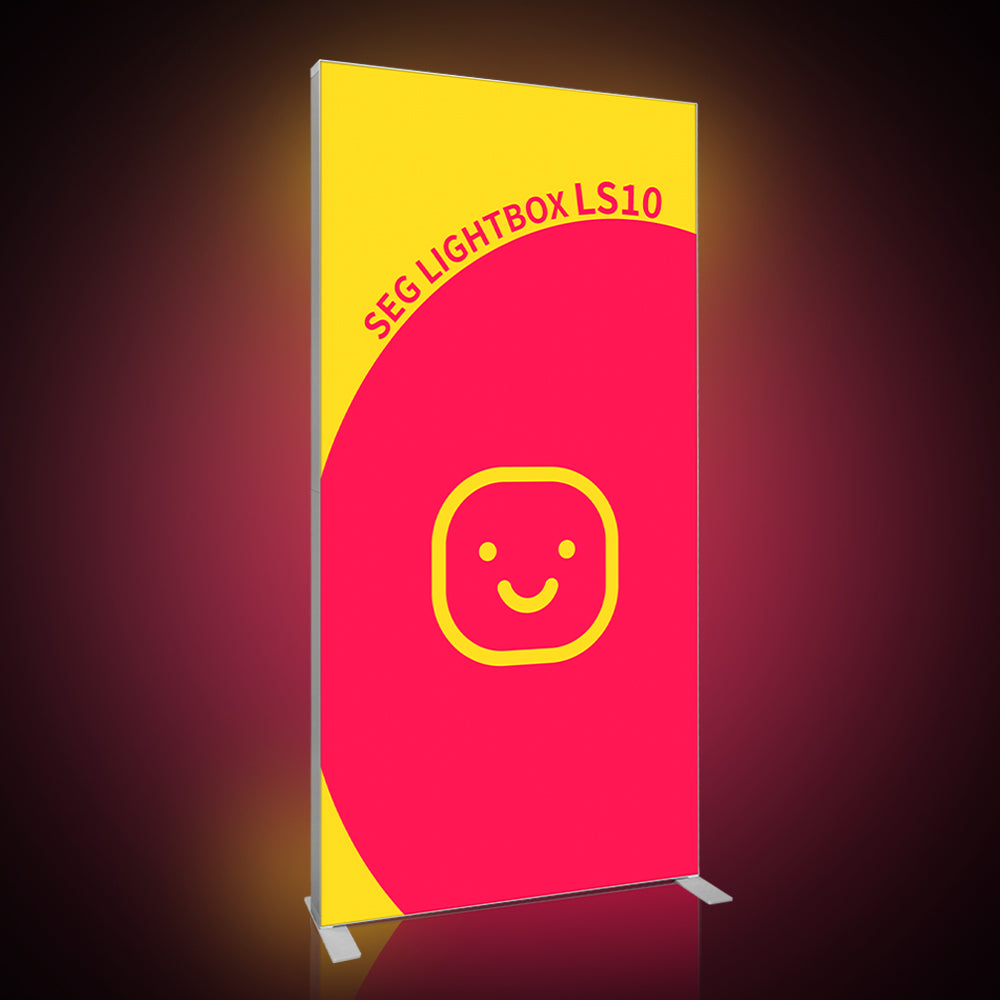

High Visual Impact: 2000 LUX brightness enhances brand exposure.
Double-sided Display: Ideal for dual-direction traffic zones.
Fast Setup: Lightweight modular structure for event efficiency.
Premium Look: Soft, evenly distributed edge lighting adds depth and professionalism.Product size:1000x450x2000mm
-
product features
The new version of the power supply connection. (simple integrated design)
The old version of the power supply connection. (cumbersome and inconvenient)
-
Complete set
1.Top light bar
2.The top of the column
3.The bottom of the column
4.Bottom light bar
5.Support rod
6.Graphic
7.Base feet
8.Power adapter
-
Product assemble instruction
1. Insert the base feet into the hole in the bottom light bar.
-
Product assemble instruction
2.Connect the bottom of the column to the base (You can connect parts labeled with the same label.) -
Product assemble instruction
3.Connect the bottom part of the column to the top of the column.
-
Product assemble instruction
4. Connect the top light bar to the top of the column. -
Product assemble instruction
5. Clamp the support rod into the slot.
-
Product assemble instruction
6. Assemble the printing. -
Product assemble instruction
7. Connect the power adapter to the light box, and then power on.
-
Graphic information
printing size: 1000x2000mm -
Photoelectric parameters
(SEG Light Box Specification:1000x2000mm)
Input voltage: 110V/220V
Electric current: 0.82A/0.41A
Total power: 90W
Luminance: 2000LUX
-
Packaging information
size：1280X380X280mm（W*D*H） -
Because this product is popular across different countries and industries, our customers often refer to it by various names in their own familiar language.
SEG Illuminated Display｜Pop-up Lightbox Stand｜Fashion Event Lightbox
Video
Parameter
AT-SHOW SEG Lightbox LS10
| Product Name | SEG Lightbox |
| Product Code | LS10 |
| Product Spec | 1000x2000mm(39.4×78.7in) |
| If it can be customized | Available |
| Product Feature |
Product Frame Specs
| Frame Size | 1000x400x2010mm(39.4x15.7x79.1in) include feet length |
| Frame Main Material | Aluminum and Plastic |
| Frame Weight | 11.8kg(26LB) |
| Outer Package Weight(1pc) | 22.3kg(49.1LB) |
| Accessories | Instruction, Power Cable |
Electric Parameter
| Light Source | LED edgelit |
| Color temperature | 6000K |
| Total Power | 90W |
| Input current | 0.82A/0.41A |
| Input Voltage | 110V/220V |
Product Package Specs
| Package Bag | Wheeled bag |
| Inner Package Size | N/A |
| Product Quantity / Inner Carton | N/A |
| Outer Package Size | Carton 1210x230x450mm(47.6×9.1×17.7in) |
| Product Quantity / Outer Carton | 1pc |
| Total Outer Package Weight | 22.3kg(49.1LB) |
Graphic Specs
| Graphic Size | 1000x2000mm(39.4×78.7in) |
| Graphic Material | Polyester |
| Thickness of Graphic Material | 0.3mm |
| Grammage of Graphic Material | 190g/㎡ |
| Printing Technology | Direct Sublimation Printing |
Product Shipping Specs
| 20GP(General Purpose Container) | 190pcs |
| 40GP(General Purpose Container) | 430pcs |
| 40HQ(High Cube Container) | 540pcs |
| Express Service | Available, MOQ: 1pcs |
Product Maintenance
| Warranty | 365D(exclude force majeure, artificial factors) |
FAQ
1. Does it use a safe voltage?
A: It uses a special power supply when working, the input of the power supply is 110V or 220V AC, and the output is 24V DC voltage for the light box.
2, Q: Is it printing material environmentally friendly?
A: It uses digital direct printing of chemical fabric material , recyclable, with environmental protection characteristics.
3. Q: Is it easy to assemble?
A: It doesn't require any tools and can be easily installed and recycled by one person.
4. Q: Can it be reused?
A: Its structure is very convenient for anyone to change the printing at any time and anywhere to change the advertising content.
5. Q: Is it double-sided?
A: It's a double-sided light box.
